Tracing Semantic Kernel

Semantic Kernel is a lightweight, open-source SDK that functions as AI middleware, enabling you to integrate AI models into your C#, Python, or Java codebase via a uniform API layer. By abstracting model interactions, it lets you swap in new models without rewriting your application logic.

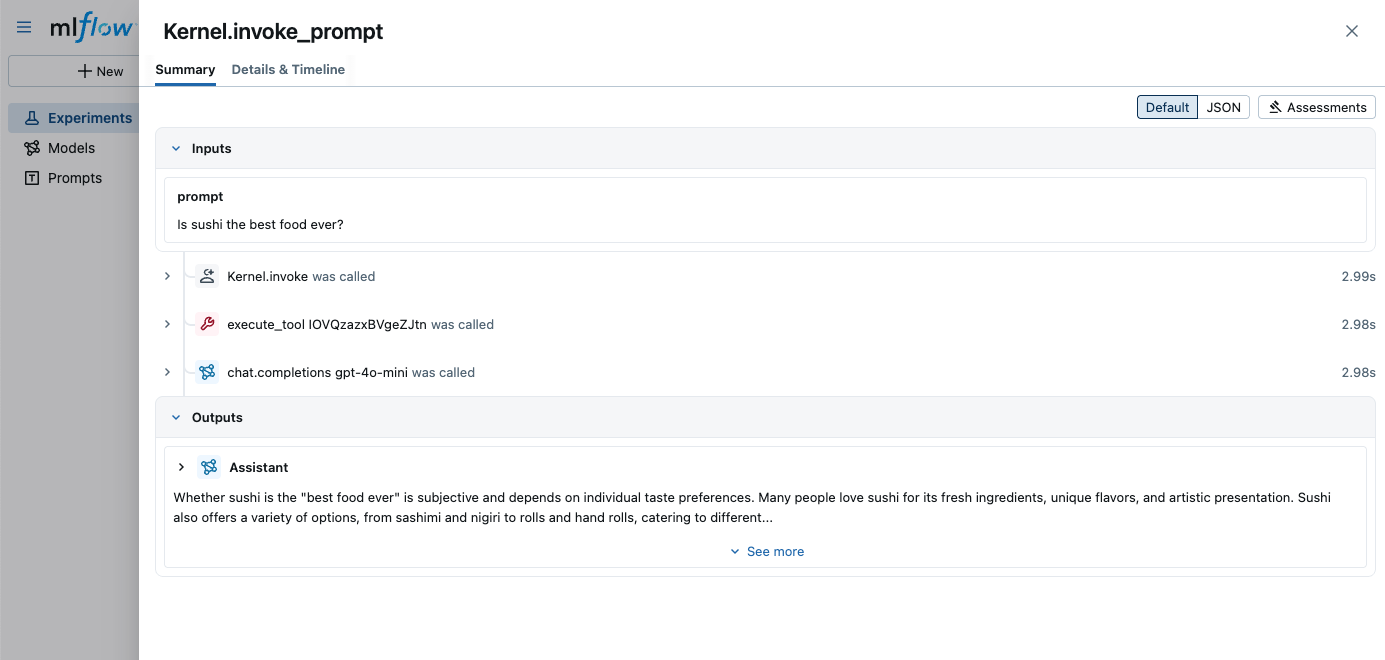

MLflow Tracing provides automatic tracing capability for Semantic Kernel. By enabling auto tracing for Semantic Kernel via the mlflow.semantic_kernel.autolog()
function, MLflow will capture traces for LLM invocations and log them to the active MLflow Experiment.
MLflow trace automatically captures the following information about Semantic Kernel calls:
- Prompts and completion responses
- Chat history and messages
- Latencies
- Model name and provider
- Kernel functions and plugins
- Template variables and arguments
- Token usage information
- Any exceptions if raised
Currently, tracing for streaming is not supported. If you want this feature, please file a feature request.
Getting Started
To get started, let's install the requisite libraries. Note that we will use OpenAI for demonstration purposes, but this tutorial extends to all providers supported by Semantic Kernel.
pip install 'mlflow>=3.2.0' semantic_kernel openai
Then, enable autologging in your Python code:
You must run mlflow.semantic_kernel.autolog()
prior to running Semantic Kernel code. If this is not performed, traces may not be logged properly.
import mlflow
mlflow.semantic_kernel.autolog()
Finally, for setup, let's establish our OpenAI token:
import os
from getpass import getpass
# Set the OpenAI API key as an environment variable
os.environ["OPENAI_API_KEY"] = getpass("openai_api_key: ")
Example Usage
Semantic Kernel primarily uses asynchronous programming patterns. The examples below use async
/await
syntax. If you're running these in a Jupyter notebook, the code will work as-is. For scripts, you'll need to wrap the async calls appropriately (e.g., using asyncio.run()
).
The simplest example to show the tracing integration is to instrument a ChatCompletion Kernel.
import openai
from semantic_kernel import Kernel
from semantic_kernel.connectors.ai.open_ai import OpenAIChatCompletion
from semantic_kernel.functions.function_result import FunctionResult
# Create a basic OpenAI client
openai_client = openai.AsyncOpenAI()
# Create a Semantic Kernel instance and register the OpenAI chat completion service
kernel = Kernel()
kernel.add_service(
OpenAIChatCompletion(
service_id="chat-gpt",
ai_model_id="gpt-4o-mini",
async_client=openai_client,
)
)
answer = await kernel.invoke_prompt("Is sushi the best food ever?")
print("AI says:", answer)
Token Usage Tracking
MLflow >= 3.2.0 supports token usage tracking for Semantic Kernel. The token usage for each LLM call during a kernel invocation will be logged in the mlflow.chat.tokenUsage
span attribute, and the total usage in the entire trace will be logged in the mlflow.trace.tokenUsage
metadata field.
# Generate a trace using the above example
# ...
# Get the trace object just created
last_trace_id = mlflow.get_last_active_trace_id()
trace = mlflow.get_trace(trace_id=last_trace_id)
# Print the token usage
total_usage = trace.info.token_usage
print("== Total token usage: ==")
print(f" Input tokens: {total_usage['input_tokens']}")
print(f" Output tokens: {total_usage['output_tokens']}")
print(f" Total tokens: {total_usage['total_tokens']}")
== Total token usage: ==
Input tokens: 14
Output tokens: 113
Total tokens: 127
Disable Auto-tracing
Auto tracing for Semantic Kernel can be disabled globally by calling mlflow.semantic_kernel.autolog(disable=True)
or mlflow.autolog(disable=True)
.
