Hyperparameter Tuning & Deployment Quickstart

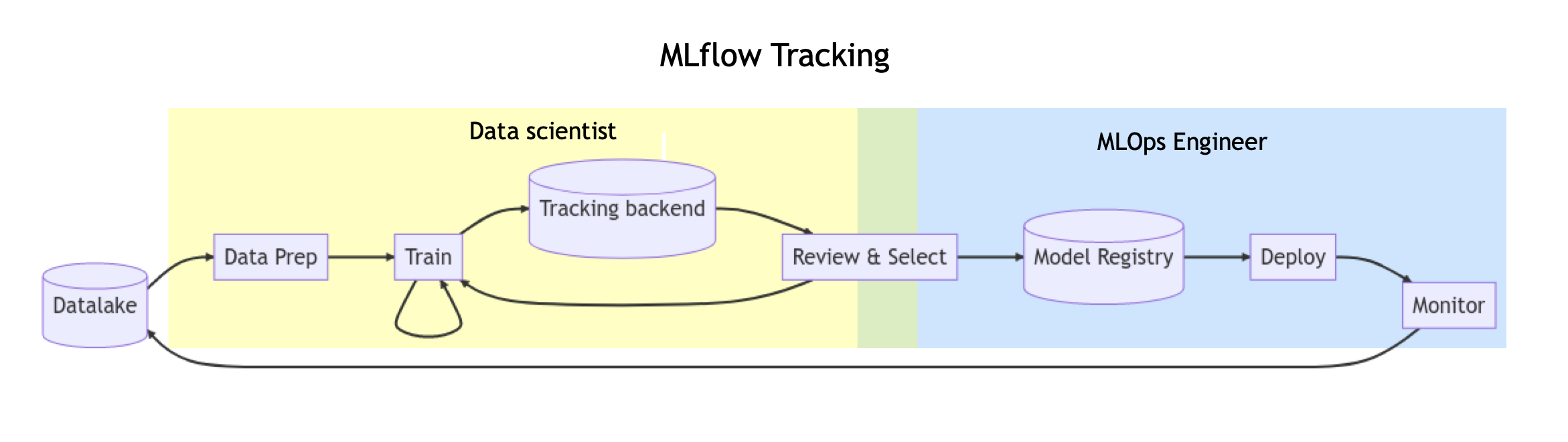

Master the complete MLOps workflow with MLflow's hyperparameter optimization capabilities. In this hands-on quickstart, you'll learn how to systematically find the best model parameters, track experiments, and deploy production-ready models.

What You'll Learn

By the end of this tutorial, you'll know how to:

• 🔍 Run intelligent hyperparameter optimization with Hyperopt and MLflow tracking
• 📊 Compare experiment results using MLflow's powerful visualization tools
• 🏆 Identify and register your best model for production use
• 🚀 Deploy models to REST APIs for real-time inference
• 📦 Build production containers ready for cloud deployment

Prerequisites & Setup

Quick Setup

For this quickstart, we'll use a local MLflow tracking server. Start it with:

mlflow ui --port 5000

Keep this running in a separate terminal. Your MLflow UI will be available at http://localhost:5000.

Install Dependencies

pip install mlflow[extras] hyperopt tensorflow scikit-learn pandas numpy

Set Environment Variable

export MLFLOW_TRACKING_URI=http://localhost:5000

Team Collaboration and Managed Setup

For production environments or team collaboration, consider using MLflow Tracking Server configurations. For a fully-managed solution, get started with Databricks Free Trial by visiting the Databricks Trial Signup Page and follow the instructions outlined there. It takes about 5 minutes to set up, after which you'll have access to a nearly fully-functional Databricks Workspace for logging your tutorial experiments, traces, models, and artifacts.

The Challenge: Wine Quality Prediction

We'll optimize a neural network that predicts wine quality from chemical properties. Our goal is to minimize Root Mean Square Error (RMSE) by finding the optimal combination of:

• Learning Rate: How aggressively the model learns
• Momentum: How much the optimizer considers previous updates

Step 1: Prepare Your Data

First, let's load and explore our dataset:

import pandas as pd
import numpy as np
from sklearn.model_selection import train_test_split
from sklearn.metrics import mean_squared_error
import tensorflow as tf
from tensorflow import keras
import mlflow
from mlflow.models import infer_signature
from hyperopt import fmin, tpe, hp, STATUS_OK, Trials

# Load the wine quality dataset
data = pd.read_csv(
    "https://raw.githubusercontent.com/mlflow/mlflow/master/tests/datasets/winequality-white.csv",
    sep=";",
)

# Create train/validation/test splits
train, test = train_test_split(data, test_size=0.25, random_state=42)
train_x = train.drop(["quality"], axis=1).values
train_y = train[["quality"]].values.ravel()
test_x = test.drop(["quality"], axis=1).values
test_y = test[["quality"]].values.ravel()

# Further split training data for validation
train_x, valid_x, train_y, valid_y = train_test_split(
    train_x, train_y, test_size=0.2, random_state=42
)

# Create model signature for deployment
signature = infer_signature(train_x, train_y)

Step 2: Define Your Model Architecture

Create a reusable function to build and train models:

def create_and_train_model(learning_rate, momentum, epochs=10):
    """
    Create and train a neural network with specified hyperparameters.

    Returns:
        dict: Training results including model and metrics
    """
    # Normalize input features for better training stability
    mean = np.mean(train_x, axis=0)
    var = np.var(train_x, axis=0)

    # Define model architecture
    model = keras.Sequential(
        [
            keras.Input([train_x.shape[1]]),
            keras.layers.Normalization(mean=mean, variance=var),
            keras.layers.Dense(64, activation="relu"),
            keras.layers.Dropout(0.2),  # Add regularization
            keras.layers.Dense(32, activation="relu"),
            keras.layers.Dense(1),
        ]
    )

    # Compile with specified hyperparameters
    model.compile(
        optimizer=keras.optimizers.SGD(learning_rate=learning_rate, momentum=momentum),
        loss="mean_squared_error",
        metrics=[keras.metrics.RootMeanSquaredError()],
    )

    # Train with early stopping for efficiency
    early_stopping = keras.callbacks.EarlyStopping(
        patience=3, restore_best_weights=True
    )

    # Train the model
    history = model.fit(
        train_x,
        train_y,
        validation_data=(valid_x, valid_y),
        epochs=epochs,
        batch_size=64,
        callbacks=[early_stopping],
        verbose=0,  # Reduce output for cleaner logs
    )

    # Evaluate on validation set
    val_loss, val_rmse = model.evaluate(valid_x, valid_y, verbose=0)

    return {
        "model": model,
        "val_rmse": val_rmse,
        "val_loss": val_loss,
        "history": history,
        "epochs_trained": len(history.history["loss"]),
    }

Step 3: Set Up Hyperparameter Optimization

Now let's create the optimization framework:

def objective(params):
    """
    Objective function for hyperparameter optimization.
    This function will be called by Hyperopt for each trial.
    """
    with mlflow.start_run(nested=True):
        # Log hyperparameters being tested
        mlflow.log_params(
            {
                "learning_rate": params["learning_rate"],
                "momentum": params["momentum"],
                "optimizer": "SGD",
                "architecture": "64-32-1",
            }
        )

        # Train model with current hyperparameters
        result = create_and_train_model(
            learning_rate=params["learning_rate"],
            momentum=params["momentum"],
            epochs=15,
        )

        # Log training results
        mlflow.log_metrics(
            {
                "val_rmse": result["val_rmse"],
                "val_loss": result["val_loss"],
                "epochs_trained": result["epochs_trained"],
            }
        )

        # Log the trained model
        mlflow.tensorflow.log_model(result["model"], name="model", signature=signature)

        # Log training curves as artifacts
        import matplotlib.pyplot as plt

        plt.figure(figsize=(12, 4))

        plt.subplot(1, 2, 1)
        plt.plot(result["history"].history["loss"], label="Training Loss")
        plt.plot(result["history"].history["val_loss"], label="Validation Loss")
        plt.title("Model Loss")
        plt.xlabel("Epoch")
        plt.ylabel("Loss")
        plt.legend()

        plt.subplot(1, 2, 2)
        plt.plot(
            result["history"].history["root_mean_squared_error"], label="Training RMSE"
        )
        plt.plot(
            result["history"].history["val_root_mean_squared_error"],
            label="Validation RMSE",
        )
        plt.title("Model RMSE")
        plt.xlabel("Epoch")
        plt.ylabel("RMSE")
        plt.legend()

        plt.tight_layout()
        plt.savefig("training_curves.png")
        mlflow.log_artifact("training_curves.png")
        plt.close()

        # Return loss for Hyperopt (it minimizes)
        return {"loss": result["val_rmse"], "status": STATUS_OK}


# Define search space for hyperparameters
search_space = {
    "learning_rate": hp.loguniform("learning_rate", np.log(1e-5), np.log(1e-1)),
    "momentum": hp.uniform("momentum", 0.0, 0.9),
}

print("Search space defined:")
print("- Learning rate: 1e-5 to 1e-1 (log-uniform)")
print("- Momentum: 0.0 to 0.9 (uniform)")

Step 4: Run the Hyperparameter Optimization

Execute the optimization experiment:

# Create or set experiment
experiment_name = "wine-quality-optimization"
mlflow.set_experiment(experiment_name)

print(f"Starting hyperparameter optimization experiment: {experiment_name}")
print("This will run 15 trials to find optimal hyperparameters...")

with mlflow.start_run(run_name="hyperparameter-sweep"):
    # Log experiment metadata
    mlflow.log_params(
        {
            "optimization_method": "Tree-structured Parzen Estimator (TPE)",
            "max_evaluations": 15,
            "objective_metric": "validation_rmse",
            "dataset": "wine-quality",
            "model_type": "neural_network",
        }
    )

    # Run optimization
    trials = Trials()
    best_params = fmin(
        fn=objective,
        space=search_space,
        algo=tpe.suggest,
        max_evals=15,
        trials=trials,
        verbose=True,
    )

    # Find and log best results
    best_trial = min(trials.results, key=lambda x: x["loss"])
    best_rmse = best_trial["loss"]

    # Log optimization results
    mlflow.log_params(
        {
            "best_learning_rate": best_params["learning_rate"],
            "best_momentum": best_params["momentum"],
        }
    )
    mlflow.log_metrics(
        {
            "best_val_rmse": best_rmse,
            "total_trials": len(trials.trials),
            "optimization_completed": 1,
        }
    )

Step 5: Analyze Results in MLflow UI

Open http://localhost:5000 in your browser to explore your results:

Table View Analysis

1. Navigate to your experiment: Click on "wine-quality-optimization"
2. Add key columns: Click "Columns" and add:
   • Metrics | val_rmse
   • Parameters | learning_rate
   • Parameters | momentum
3. Sort by performance: Click the val_rmse column header to sort by best performance

Visual Analysis

1. Switch to Chart view: Click the "Chart" tab
2. Create parallel coordinates plot:
   • Select "Parallel coordinates"
   • Add learning_rate and momentum as coordinates
   • Set val_rmse as the metric
3. Interpret the visualization:
   • Blue lines = better performing runs
   • Red lines = worse performing runs
   • Look for patterns in successful parameter combinations

Key Insights to Look For

• Learning rate patterns: Too high causes instability, too low causes slow convergence
• Momentum effects: Moderate momentum (0.3-0.7) often works best
• Training curves: Check artifacts to see if models converged properly

Step 6: Register Your Best Model

Time to promote your best model to production:

1. Find the best run: In the Table view, click on the run with the lowest val_rmse

2. Navigate to model artifacts: Scroll to the "Artifacts" section

3. Register the model:

   • Click "Register Model" next to the model folder
   • Enter model name: wine-quality-predictor
   • Add description: "Optimized neural network for wine quality prediction"
   • Click "Register"

4. Manage model lifecycle:

   • Go to "Models" tab in MLflow UI
   • Click on your registered model
   • Transition to "Staging" stage for testing
   • Add tags and descriptions as needed

Step 7: Deploy Your Model Locally

Test your model with a REST API deployment:

# Serve the model (choose the version number you registered)
mlflow models serve -m "models:/wine-quality-predictor/1" --port 5002

Port Configuration

We use port 5002 to avoid conflicts with the MLflow UI running on port 5000. In production, you'd typically use port 80 or 443.

Test Your Deployment

# Test with a sample wine
curl -X POST http://localhost:5002/invocations \
  -H "Content-Type: application/json" \
  -d '{
    "dataframe_split": {
      "columns": [
        "fixed acidity", "volatile acidity", "citric acid", "residual sugar",
        "chlorides", "free sulfur dioxide", "total sulfur dioxide", "density",
        "pH", "sulphates", "alcohol"
      ],
      "data": [[7.0, 0.27, 0.36, 20.7, 0.045, 45, 170, 1.001, 3.0, 0.45, 8.8]]
    }
  }'

Expected Response:

{
  "predictions": [5.31]
}

This predicts a wine quality score of approximately 5.31 on the 3-8 scale.

Test with Python

import requests
import json

# Prepare test data
test_wine = {
    "dataframe_split": {
        "columns": [
            "fixed acidity",
            "volatile acidity",
            "citric acid",
            "residual sugar",
            "chlorides",
            "free sulfur dioxide",
            "total sulfur dioxide",
            "density",
            "pH",
            "sulphates",
            "alcohol",
        ],
        "data": [[7.0, 0.27, 0.36, 20.7, 0.045, 45, 170, 1.001, 3.0, 0.45, 8.8]],
    }
}

# Make prediction request
response = requests.post(
    "http://localhost:5002/invocations",
    headers={"Content-Type": "application/json"},
    data=json.dumps(test_wine),
)

prediction = response.json()
print(f"Predicted wine quality: {prediction['predictions'][0]:.2f}")

Step 8: Build Production Container

Create a Docker container for cloud deployment:

# Build Docker image
mlflow models build-docker \
  --model-uri "models:/wine-quality-predictor/1" \
  --name "wine-quality-api"

Build Time

The Docker build process typically takes 3-5 minutes as it installs all dependencies and configures the runtime environment.

Test Your Container

# Run the container
docker run -p 5003:8080 wine-quality-api

# Test in another terminal
curl -X POST http://localhost:5003/invocations \
  -H "Content-Type: application/json" \
  -d '{
    "dataframe_split": {
      "columns": ["fixed acidity","volatile acidity","citric acid","residual sugar","chlorides","free sulfur dioxide","total sulfur dioxide","density","pH","sulphates","alcohol"],
      "data": [[7.0, 0.27, 0.36, 20.7, 0.045, 45, 170, 1.001, 3.0, 0.45, 8.8]]
    }
  }'

Step 9: Deploy to Cloud (Optional)

Your Docker container is now ready for cloud deployment:

Popular Cloud Options

AWS: Deploy to ECS, EKS, or SageMaker

# Example: Push to ECR and deploy to ECS
aws ecr create-repository --repository-name wine-quality-api
docker tag wine-quality-api:latest <your-account>.dkr.ecr.us-east-1.amazonaws.com/wine-quality-api:latest
docker push <your-account>.dkr.ecr.us-east-1.amazonaws.com/wine-quality-api:latest

Azure: Deploy to Container Instances or AKS

# Example: Deploy to Azure Container Instances
az container create \
  --resource-group myResourceGroup \
  --name wine-quality-api \
  --image wine-quality-api:latest \
  --ports 8080

Google Cloud: Deploy to Cloud Run or GKE

# Example: Deploy to Cloud Run
gcloud run deploy wine-quality-api \
  --image gcr.io/your-project/wine-quality-api \
  --platform managed \
  --port 8080

Databricks: Deploy with Mosaic AI Model Serving

# First, register your model in Unity Catalog
import mlflow

mlflow.set_registry_uri("databricks-uc")

with mlflow.start_run():
    # Log your model to Unity Catalog
    mlflow.tensorflow.log_model(
        model,
        name="wine-quality-model",
        registered_model_name="main.default.wine_quality_predictor",
    )

# Then create a serving endpoint using the Databricks UI:
# 1. Navigate to "Serving" in the Databricks workspace
# 2. Click "Create serving endpoint"
# 3. Select your registered model from Unity Catalog
# 4. Configure compute and traffic settings
# 5. Deploy and test your endpoint

Or use the Databricks deployment client programmatically:

from mlflow.deployments import get_deploy_client

# Create deployment client
client = get_deploy_client("databricks")

# Create serving endpoint
endpoint = client.create_endpoint(
    config={
        "name": "wine-quality-endpoint",
        "config": {
            "served_entities": [
                {
                    "entity_name": "main.default.wine_quality_predictor",
                    "entity_version": "1",
                    "workload_size": "Small",
                    "scale_to_zero_enabled": True,
                }
            ]
        },
    }
)

# Query the endpoint
response = client.predict(
    endpoint="wine-quality-endpoint",
    inputs={
        "dataframe_split": {
            "columns": [
                "fixed acidity",
                "volatile acidity",
                "citric acid",
                "residual sugar",
                "chlorides",
                "free sulfur dioxide",
                "total sulfur dioxide",
                "density",
                "pH",
                "sulphates",
                "alcohol",
            ],
            "data": [[7.0, 0.27, 0.36, 20.7, 0.045, 45, 170, 1.001, 3.0, 0.45, 8.8]],
        }
    },
)

What You've Accomplished

🎉 Congratulations! You've completed a full MLOps workflow:

• ✅ Optimized hyperparameters using systematic search instead of guesswork
• ✅ Tracked 15+ experiments with complete reproducibility
• ✅ Visualized results to understand parameter relationships
• ✅ Registered your best model with proper versioning
• ✅ Deployed to REST API for real-time predictions
• ✅ Containerized for production deployment

Next Steps

Enhance Your MLOps Skills

• Advanced Optimization: Try Optuna or Ray Tune for more sophisticated hyperparameter optimization. Both work seamlessly with MLflow.
• Model Monitoring: Implement drift detection and performance monitoring in production
• A/B Testing: Compare model versions in production using MLflow's model registry
• CI/CD Integration: Automate model training and deployment with GitHub Actions or similar

Scale Your Infrastructure with a Tracking Server

• MLflow on Kubernetes: Deploy MLflow tracking server on K8s for team collaboration
• Database Backend: Use PostgreSQL or MySQL instead of file-based storage
• Artifact Storage: Configure S3, Azure Blob, or GCS for model artifacts
• Authentication: Add user management and access controls with built-in Authentication

The foundation you've built here scales to any machine learning problem. The key principles—systematic experimentation, comprehensive tracking, and automated deployment—remain constant across domains and complexity levels.
