End-to-End Workflow: Evaluation-Driven Development
This guide demonstrates the complete workflow for building and evaluating GenAI applications using MLflow's evaluation-driven development approach.
Databricks Users: This workflow uses MLflow OSS evaluation dataset APIs. For Databricks environments, use the databricks-agents package instead, which provides optimized dataset management integrated with Unity Catalog.
Workflow Overview
Evaluation-Driven Development
Prerequisites
pip install --upgrade mlflow>=3.4 openai
Step 1: Build & Trace Your Application
Start with a traced GenAI application. This example shows a customer support bot, but the pattern applies to any LLM application. You can use the mlflow.trace decorator for manual instrumentation or enable automatic tracing for OpenAI as shown below.
import mlflow
import openai
import os
# Configure environment
os.environ["OPENAI_API_KEY"] = "your-api-key-here"
mlflow.set_experiment("Customer Support Bot")
# Enable automatic tracing for OpenAI
mlflow.openai.autolog()
class CustomerSupportBot:
def __init__(self):
self.client = openai.OpenAI()
self.knowledge_base = {
"refund": "Full refunds within 30 days with receipt.",
"shipping": "Standard: 5-7 days. Express available.",
"warranty": "1-year manufacturer warranty included.",
}
@mlflow.trace
def answer(self, question: str) -> str:
# Retrieve relevant context
context = self._get_context(question)
# Generate response
response = self.client.chat.completions.create(
model="gpt-4o-mini",
messages=[
{"role": "system", "content": "You are a helpful support assistant."},
{
"role": "user",
"content": f"Context: {context}\n\nQuestion: {question}",
},
],
temperature=0.3,
)
return response.choices[0].message.content
def _get_context(self, question: str) -> str:
# Simple keyword matching for demo
for key, value in self.knowledge_base.items():
if key in question.lower():
return value
return "General customer support information."
bot = CustomerSupportBot()
Step 2: Capture Production Traces
Run your application with real or test scenarios to capture traces. Later, you'll use mlflow.search_traces() to retrieve these traces for annotation and dataset creation.
# Test scenarios
test_questions = [
"What is your refund policy?",
"How long does shipping take?",
"Is my product under warranty?",
"Can I get express shipping?",
]
# Capture traces - automatically logged to the active experiment
for question in test_questions:
response = bot.answer(question)
Step 3: Add Ground Truth Expectations

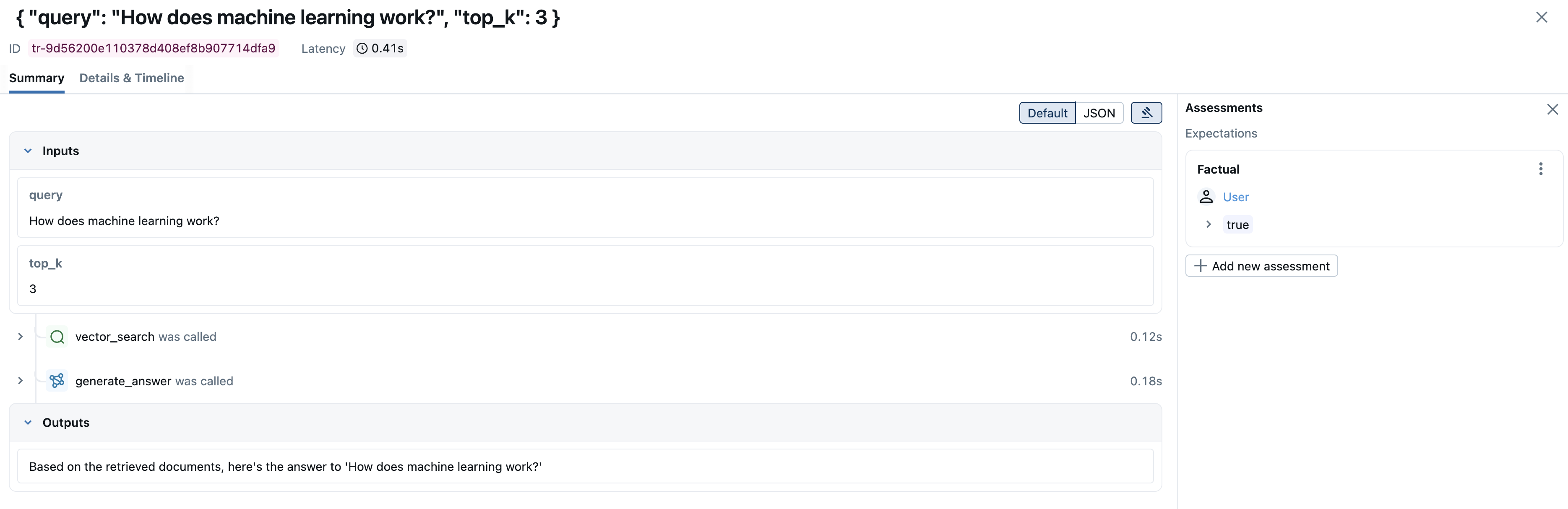

Add expectations to your traces to define what constitutes correct behavior. Use mlflow.log_expectation() to annotate traces with ground truth values that will serve as your evaluation baseline.
# Search for recent traces (uses current active experiment by default)
traces = mlflow.search_traces(
max_results=10, return_type="list" # Return list of Trace objects for iteration
)
# Add expectations to specific traces
for trace in traces:
# Get the question from the root span inputs
root_span = trace.data._get_root_span()
question = (
root_span.inputs.get("question", "") if root_span and root_span.inputs else ""
)
if "refund" in question.lower():
mlflow.log_expectation(
trace_id=trace.info.trace_id,
name="key_information",
value={"must_mention": ["30 days", "receipt"], "tone": "helpful"},
)
elif "shipping" in question.lower():
mlflow.log_expectation(
trace_id=trace.info.trace_id,
name="key_information",
value={"must_mention": ["5-7 days"], "offers_express": True},
)
Step 4: Create an Evaluation Dataset
Transform your annotated traces into a reusable evaluation dataset. Use create_dataset() to initialize your dataset and merge_records() to add test cases from multiple sources.
from mlflow.genai.datasets import create_dataset
# Create dataset from current experiment
dataset = create_dataset(
name="customer_support_qa_v1",
experiment_id=mlflow.get_experiment_by_name("Customer Support Bot").experiment_id,
tags={"stage": "validation", "domain": "customer_support"},
)
# Re-fetch traces to get the attached expectations
# The expectations are now part of the trace data
annotated_traces = mlflow.search_traces(
max_results=100,
return_type="list", # Need list for merge_records
)
# Add traces to dataset
dataset.merge_records(annotated_traces)
# Optionally add manual test cases
manual_tests = [
{
"inputs": {"question": "Can I return an item after 45 days?"},
"expectations": {"should_clarify": "30-day policy", "tone": "apologetic"},
},
{
"inputs": {"question": "Do you ship internationally?"},
"expectations": {"provides_alternatives": True},
},
]
dataset.merge_records(manual_tests)
Step 5: Run Systematic Evaluation
Evaluate your application against the dataset using built-in and custom scorers. Use mlflow.genai.evaluate() to run comprehensive evaluations with scorers like Correctness for factual accuracy assessment. You can also create custom scorers using the @scorer decorator to evaluate domain-specific criteria.
from mlflow.genai import evaluate
from mlflow.genai.scorers import Correctness, Guidelines, scorer
# Define custom scorer for your specific needs
@scorer
def contains_required_info(outputs: str, expectations: dict) -> float:
"""Check if response contains required information."""
if "must_mention" not in expectations:
return 1.0
output_lower = outputs.lower()
mentioned = [term for term in expectations["must_mention"] if term in output_lower]
return len(mentioned) / len(expectations["must_mention"])
# Configure evaluation
scorers = [
Correctness(name="factual_accuracy"),
Guidelines(
name="support_quality",
guidelines="Response must be helpful, accurate, and professional",
),
contains_required_info,
]
# Run evaluation
results = evaluate(
data=dataset,
predict_fn=bot.answer,
scorers=scorers,
model_id="customer-support-bot-v1",
)
# Access results
metrics = results.metrics
detailed_results = results.tables["eval_results_table"]
Step 6: Iterate and Improve
Use evaluation results to improve your application, then re-evaluate using the same dataset.
# Analyze results
low_scores = detailed_results[detailed_results["factual_accuracy/score"] < 0.8]
if not low_scores.empty:
# Identify patterns in failures
failed_questions = low_scores["inputs.question"].tolist()
# Example improvements based on failure analysis
bot.knowledge_base[
"refund"
] = "Full refunds available within 30 days with original receipt. Store credit offered after 30 days."
bot.client.temperature = 0.2 # Reduce temperature for more consistent responses
# Re-evaluate with same dataset for comparison
improved_results = evaluate(
data=dataset,
predict_fn=bot.answer, # Updated bot
scorers=scorers,
model_id="customer-support-bot-v2",
)
# Compare versions
improvement = (
improved_results.metrics["factual_accuracy/score"]
- metrics["factual_accuracy/score"]
)
