Structured Output

MLflow Prompt Registry supports defining structured output schemas for your prompts, ensuring that language model responses follow a consistent format and can be validated. This feature is particularly useful for applications that need to parse and process model outputs programmatically.

Overview​

Structured output allows you to:

  • Define expected response formats using Pydantic models or JSON schemas
  • Validate model responses against your defined schema
  • Ensure consistency across different model calls
  • Improve integration with downstream applications
  • Enable type safety in your GenAI applications
note

Important: The response_format parameter is used for tracking and documentation purposes rather than direct runtime enforcement. MLflow stores this information as metadata to help you understand the expected output structure of your prompts, but it does not automatically validate or enforce the format during model execution. You are responsible for implementing the actual validation and enforcement in your application code.

Basic Usage​

Using Pydantic Models​

The most common way to define structured output is using Pydantic models:

import mlflow
from pydantic import BaseModel
from typing import List


class SummaryResponse(BaseModel):
    summary: str
    key_points: List[str]
    word_count: int

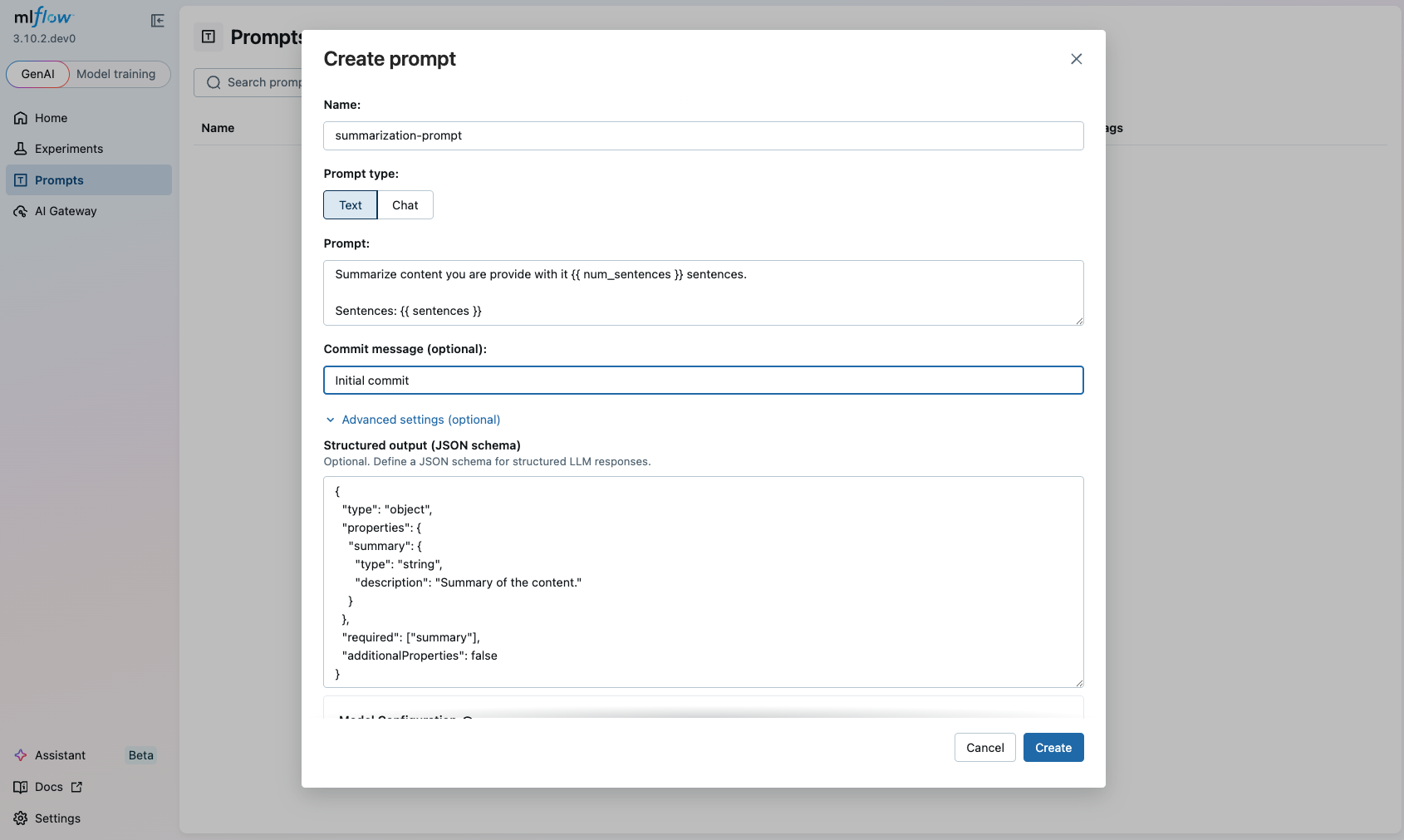

# Register prompt with structured output
prompt = mlflow.genai.register_prompt(
    name="summarization-prompt",
    template="Summarize the following text in {{ num_sentences }} sentences: {{ text }}",
    response_format=SummaryResponse,
    commit_message="Added structured output for summarization",
    tags={"task": "summarization", "structured": "true"},
)

Using JSON Schema​

You can also define response formats using JSON schema dictionaries:

import mlflow

# Define response format as JSON schema
response_schema = {
    "type": "object",
    "properties": {
        "answer": {"type": "string", "description": "The main answer"},
        "confidence": {"type": "number", "description": "Confidence score (0-1)"},
        "sources": {
            "type": "array",
            "items": {"type": "string"},
            "description": "List of source references",
        },
    },
    "required": ["answer", "confidence"],
}

# Register prompt with JSON schema
prompt = mlflow.genai.register_prompt(
    name="qa-prompt",
    template="Answer the following question: {{ question }}",
    response_format=response_schema,
    commit_message="Added structured output for Q&A",
    tags={"task": "qa", "structured": "true"},
)

Advanced Examples​

Complex Response Formats​

For more complex applications, you can define nested structures:

import mlflow
from pydantic import BaseModel
from typing import List, Optional
from datetime import datetime


class AnalysisResult(BaseModel):
    sentiment: str
    confidence: float
    entities: List[str]
    summary: str


class DocumentAnalysis(BaseModel):
    document_id: str
    analysis: AnalysisResult
    processed_at: datetime
    metadata: Optional[dict] = None


# Register prompt with complex structured output
prompt = mlflow.genai.register_prompt(
    name="document-analyzer",
    template="Analyze the following document: {{ document_text }}",
    response_format=DocumentAnalysis,
    commit_message="Added comprehensive document analysis output",
    tags={"task": "analysis", "complex": "true"},
)

Chat Prompts with Structured Output​

Chat prompts can also use structured output formats:

import mlflow
from pydantic import BaseModel


class ChatResponse(BaseModel):
    response: str
    tone: str
    suggestions: List[str]


# Chat prompt with structured output
chat_template = [
    {"role": "system", "content": "You are a helpful {{ style }} assistant."},
    {"role": "user", "content": "{{ question }}"},
]

prompt = mlflow.genai.register_prompt(
    name="assistant-chat",
    template=chat_template,
    response_format=ChatResponse,
    commit_message="Added structured output for chat responses",
    tags={"type": "chat", "structured": "true"},
)

Loading and Using Structured Prompts​

When you load a prompt with structured output, you can access the response format for tracking and documentation purposes:

# Load the prompt
prompt = mlflow.genai.load_prompt("prompts:/summarization-prompt/1")

# Check if it has structured output (for tracking purposes)
if prompt.response_format:
    print(f"Response format: {prompt.response_format}")

# Format the prompt
formatted_text = prompt.format(num_sentences=3, text="Your content here...")

# Use with a language model that supports structured output
# Note: You need to implement validation against your defined schema

Integration with Language Models​

OpenAI Integration​

import openai

client = openai.OpenAI()

# Load prompt with structured output
prompt = mlflow.genai.load_prompt("prompts:/summarization-prompt/1")

# Use with OpenAI's response_format parameter
response = client.chat.completions.create(
    model="gpt-4.1",
    messages=[
        {"role": "user", "content": prompt.format(num_sentences=3, text="Your text")}
    ],
    response_format=prompt.response_format,  # OpenAI's structured output
)

# Get structured output
import json

result = json.loads(response.choices[0].message.content)

LangChain Integration​

from langchain.prompts import PromptTemplate
from langchain_openai import ChatOpenAI
from pydantic import BaseModel

# Load prompt with structured output
prompt = mlflow.genai.load_prompt("prompts:/qa-prompt/1")

# Create LangChain prompt template
langchain_prompt = PromptTemplate.from_template(prompt.template)

# Use with LangChain's structured output
llm = ChatOpenAI(model="gpt-4")
chain = langchain_prompt | llm.with_structured_output(prompt.response_format)

# Execute the chain
result = chain.invoke({"question": "What is MLflow?"})
# result will be a validated Pydantic model instance

Key Takeaways​

  • Structured output is used for tracking and documentation purposes to define expected response formats
  • Pydantic models provide type safety and validation schemas for your response formats
  • JSON schemas offer flexibility for complex nested structures
  • Integration with popular frameworks like OpenAI and LangChain is straightforward
  • Manual validation is required in your application code - MLflow does not enforce the format at runtime

Next Steps​

Structured output is a powerful feature that can significantly improve the reliability and maintainability of your GenAI applications by ensuring consistent data formats and enabling better integration with downstream systems.
